Winter greenhouse heating costs can drain your budget faster than you think. Many growers face the painful choice between keeping plants alive and managing energy bills.
The secret to cost-effective greenhouse heating lies in combining smart insulation systems with efficient heating methods. By using top insulation curtains, four-sided thermal barriers, and strategic heat retention techniques, you can reduce heating costs by up to 60% while maintaining optimal growing conditions.
After 29 years in the greenhouse industry, I have seen countless growers struggle with winter heating costs. The key is not just finding the cheapest heating method, but creating a system that works efficiently together. Let me share the strategies that have helped our clients across different climates reduce their heating expenses while maintaining healthy plant growth.
Don’t Miss:——Commercial Hydroponic Greenhouse Systems: How Do Design, Construction, and ROI Interconnect?
You might like:——What is a Smart Greenhouse? The Ultimate Guide to Automated Growing
Cheapest Greenhouse Heating: Maximizing Sunlight and Simple Materials?
Most growers overlook the power of free solar energy during winter months. Smart positioning and simple materials can provide significant heating without touching your electricity bill.
The most cost-effective greenhouse heating combines passive solar collection with thermal mass materials like water barrels, concrete blocks, or stone walls. These materials absorb heat during sunny days and release it slowly during cold nights, reducing active heating needs by 30-40%.
Strategic Solar Collection Methods
The foundation of cheap greenhouse heating starts with maximizing every ray of winter sunlight. I always tell my clients that the sun is your best heating partner, even on cloudy winter days. The trick is capturing and storing this energy effectively.
Water barrels painted black work as excellent thermal mass collectors. I recommend placing 55-gallon drums along the north wall of your greenhouse. During my work with growers in Central Asia, we discovered that positioning these barrels at a slight angle toward the sun increases heat absorption by 25%. The water heats up during the day and releases warmth throughout the night.
Concrete blocks create another powerful thermal mass system. Stack them in areas that receive direct sunlight during winter months. The blocks absorb heat slowly but release it for hours after sunset. In our projects across Europe, we found that combining concrete thermal mass with reflective materials on the north wall can extend the heat release period by several hours.
| Material Type | Heat Storage Capacity | Cost Level | Installation Difficulty |
|---|---|---|---|
| Water Barrels | High (4x air capacity) | Very Low | Easy |
| Concrete Blocks | Medium (2x air capacity) | Low | Medium |
| Stone Walls | High (3x air capacity) | Medium | Hard |
| Phase Change Materials | Very High (5x air capacity) | High | Medium |
Reflective materials multiply your solar heating effectiveness. Aluminum foil or emergency blankets attached to the north wall reflect sunlight back onto your plants and thermal mass. This simple addition can increase internal temperatures by 5-8 degrees Fahrenheit during sunny winter days.
Insulation Strategies for Different Greenhouse Sizes: Clever Tricks and Major Projects?
Small greenhouses need different insulation approaches than large commercial structures. The right strategy depends on your greenhouse size and local climate conditions.
Small greenhouses benefit from bubble wrap insulation and double-wall construction, while large structures require professional thermal curtain systems and perimeter insulation. Each size category has specific insulation methods that provide the best cost-to-benefit ratio.
Small Greenhouse Insulation Techniques
For greenhouses under 200 square feet, simple insulation methods deliver impressive results. Bubble wrap remains one of the most effective and affordable options I recommend to hobby growers. The air pockets in bubble wrap create an insulation barrier while still allowing light transmission.
I learned this technique from a grower in Northern Europe who reduced his heating costs by 45% using large bubble wrap. Apply it directly to the interior glass or plastic surfaces using water or spray adhesive. The bubble wrap should have large bubbles for better insulation properties. Replace it every two years as the material degrades under UV exposure.
Double-wall construction works excellently for small greenhouse builds. Create an air gap between two layers of covering material. This trapped air acts as insulation while maintaining light levels. In my experience working with growers in Canada, this method reduces heat loss by 35-50% compared to single-wall construction.
Ground insulation often gets overlooked in small greenhouses. Dig a trench around your greenhouse perimeter and install rigid foam insulation boards. This prevents ground frost from stealing heat through the foundation. Extend the insulation 18 inches below ground level and 6 inches above for maximum effectiveness.

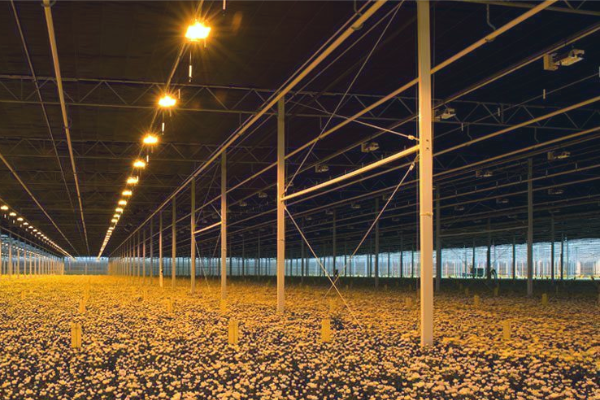

Large Greenhouse Insulation Systems
Commercial greenhouses require sophisticated insulation systems that balance energy savings with operational efficiency. Our Chengfei greenhouse designs incorporate both top insulation and four-sided insulation systems for maximum heat retention.
Top insulation curtains reduce rapid heat dissipation through the roof area. These automated systems deploy during cold nights and retract during sunny days. The curtains create an insulation layer that can reduce heat loss by 40-60% during nighttime hours. I have installed these systems across Southeast Asia where night temperatures drop significantly.
Four-sided insulation curtains provide comprehensive heat protection during extreme cold periods. These curtains cover the sidewalls and end walls of the greenhouse, creating a thermal envelope around your growing space. The system works particularly well in Central Asian climates where winter winds can strip heat from greenhouse walls rapidly.
| Greenhouse Size | Primary Insulation Method | Secondary Method | Expected Heat Savings |
|---|---|---|---|
| Under 200 sq ft | Bubble wrap + thermal mass | Ground insulation | 35-50% |
| 200-1000 sq ft | Double wall + curtains | Perimeter insulation | 45-60% |
| 1000-5000 sq ft | Automated thermal curtains | Slope barriers | 50-70% |
| Over 5000 sq ft | Multi-layer curtain systems | Advanced controls | 60-80% |
Our greenhouse designs include external slope additions that provide wind resistance and additional insulation layers. These slopes create a double-layer covering effect that significantly improves thermal performance in film-type greenhouses. The slopes also help shed snow and ice, preventing structural damage during severe winter weather.

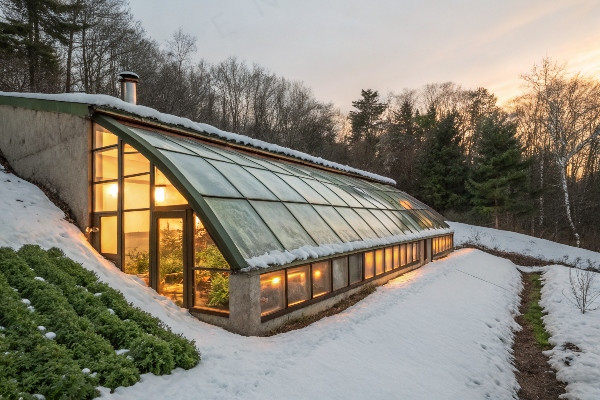

What is a Deep Winter Greenhouse? How Does It Achieve Energy-Saving Warmth?
Deep winter greenhouses represent the ultimate in cold-climate growing technology. These structures maintain growing conditions without active heating even in extreme cold.
A deep winter greenhouse uses earth-sheltered design, massive south-facing glazing, and superior insulation to capture and store solar energy. These structures can maintain 40-50°F internal temperatures when outside temperatures drop to -20°F, using only passive solar heating.
Earth-Sheltered Design Principles
Deep winter greenhouses work by integrating with the earth’s natural thermal mass and protection. The back and side walls are built into a hillside or covered with earth berms. This earth contact provides stable temperatures year-round since soil temperatures remain relatively constant below the frost line.
I first encountered this design working with research institutions in Northern Canada. The earth-sheltered walls maintain temperatures around 45-50°F even when air temperatures drop below zero. This thermal stability reduces heating requirements dramatically compared to above-ground structures.
The south-facing wall features maximum glazing to capture winter sunlight. This wall typically slopes at an angle optimized for winter sun angles in your specific latitude. The steep glazing angle allows maximum solar penetration during low winter sun periods while preventing overheating during summer months.
Thermal mass integration becomes critical in deep winter greenhouse design. The floor typically consists of concrete, stone, or other high-mass materials that absorb solar energy during the day. Some designs incorporate underground thermal mass systems that store heat in rock beds or water tanks beneath the growing area.
Advanced Insulation and Ventilation Systems
Deep winter greenhouses require superior insulation performance to maintain growing temperatures without active heating. The roof and exposed walls need insulation values of R-30 or higher. This typically requires thick rigid foam insulation or advanced materials like vacuum-insulated panels.
Ventilation systems in deep winter greenhouses operate differently than conventional structures. Instead of exhausting heated air, these systems circulate air through underground tubes or thermal mass areas. This earth-tube ventilation pre-conditions incoming air using stable ground temperatures.
Automated systems control ventilation, thermal curtains, and backup heating based on internal and external temperature sensors. These controls maximize solar gain during sunny periods while minimizing heat loss during cloudy or nighttime conditions. The automation ensures optimal growing conditions while maintaining energy efficiency.
| Design Element | Function | Energy Impact | Implementation Cost |
|---|---|---|---|
| Earth berming | Thermal stability | 60-70% heat reduction | Medium |
| South glazing | Solar collection | 80-90% heat source | High |
| Thermal mass | Heat storage | 40-50% heat retention | Medium |
| Advanced insulation | Heat retention | 70-80% loss reduction | High |
The growing environment in deep winter greenhouses differs from heated structures. Plants grow more slowly but remain healthy throughout winter months. This allows year-round production of cold-hardy crops like leafy greens, herbs, and some root vegetables without any fossil fuel heating.

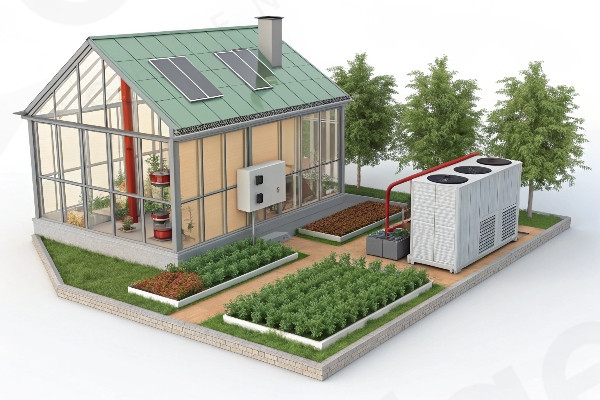

Choosing the Right Heating System: Considering Cost, Efficiency, and Sustainability?
Selecting the optimal heating system requires balancing initial costs, operating expenses, and environmental impact. Different heating methods work better for specific greenhouse sizes and climates.
The best heating system combines high efficiency with reasonable operating costs for your specific situation. Electric heat pumps work well for moderate climates, while biomass heating suits areas with abundant organic materials. Natural gas provides consistent heat but requires proper ventilation and safety systems.
Electric Heating Options
Electric heating systems offer precise temperature control and easy installation. Heat pumps provide the highest efficiency among electric options, delivering 2-4 times more heat energy than they consume in electricity. I recommend heat pumps for greenhouses in moderate climates where winter temperatures stay above 20°F.
Radiant floor heating creates even temperature distribution throughout the growing space. Electric cables or water tubes installed beneath the growing beds provide gentle, consistent warmth directly to plant root zones. This method reduces overall heating requirements since plants receive heat where they need it most.
Electric fan heaters work well for backup heating or small greenhouse spaces. Choose units with thermostatic controls and adequate capacity for your greenhouse volume. Calculate heating requirements based on your greenhouse size, insulation level, and local climate conditions. Generally, plan for 10-15 watts per square foot in well-insulated structures.
Fossil Fuel Heating Systems
Natural gas heating provides reliable, cost-effective warmth for larger greenhouse operations. Unit heaters with horizontal air flow distribute heat evenly throughout the growing space. Proper ventilation becomes essential with gas heating to prevent carbon monoxide buildup and maintain air quality.
Propane heating offers flexibility for greenhouses without natural gas access. Portable propane heaters work well for temporary heating needs, while permanent installations provide consistent performance. Monitor propane levels carefully and maintain proper ventilation with all propane heating systems.
Oil heating systems work well in areas where other fuel sources are expensive or unavailable. Modern oil-fired greenhouse heaters achieve high efficiency ratings and provide dependable heat output. Consider fuel storage requirements and delivery logistics when choosing oil heating systems.
Renewable Heating Alternatives
Biomass heating utilizes wood chips, pellets, or agricultural waste to provide sustainable greenhouse heating. These systems work particularly well for growers with access to low-cost organic materials. Automated feed systems reduce labor requirements while maintaining consistent heat output.
Solar air heating systems supplement other heating methods during sunny winter days. Glazed collector panels heat air that circulates through the greenhouse. While not sufficient as primary heating in most climates, solar air systems reduce conventional heating requirements by 20-30%.
Geothermal heating taps into stable ground temperatures for efficient greenhouse heating. Ground-source heat pumps circulate fluid through buried loops to extract earth’s thermal energy. High installation costs limit geothermal to larger operations, but operating costs remain very low.
| Heating System | Efficiency Rating | Operating Cost | Environmental Impact | Best Application |
|---|---|---|---|---|
| Air-source heat pump | 200-400% | Medium | Low | Moderate climates |
| Ground-source heat pump | 300-500% | Low | Very Low | Large operations |
| Natural gas | 80-95% | Low | Medium | Urban areas |
| Biomass | 70-85% | Very Low | Very Low | Rural areas |
| Electric resistance | 100% | High | Medium | Backup heating |
System sizing requires careful calculation of heat loss rates, desired temperature ranges, and local climate conditions. Oversized systems waste energy and money, while undersized systems cannot maintain proper growing conditions. Work with heating professionals to determine optimal system capacity for your specific greenhouse and growing requirements.
Conclusion
Cost-effective greenhouse heating combines smart insulation, passive solar design, and efficient heating systems tailored to your specific needs and climate conditions.
